Automatic Packing & Palletizing Line
The line combines an automatic bag placer, packing machine, conveyors, check weigher, inkjet coder, palletizing robot, pallet magazine, pallet shaper and stretch wrapper. It runs the whole process from bag placing, weighing and filling to palletizing and wrapping without operators, for both valve bags and open-mouth bags.
- Packing & palletizing rate
- 400–1000 bags/h
- Bag weight
- 5–50 kg
Advantages
Simple operation
Touchscreen control, simple structure, low failure rate.
Saves energy and space
Uses about one third of the power of a mechanical palletizer, with a small footprint.
One robot, many lines
Handles products from up to 4 independent lines at once.
Flexible patterns
10 built-in pallet patterns plus custom patterns.

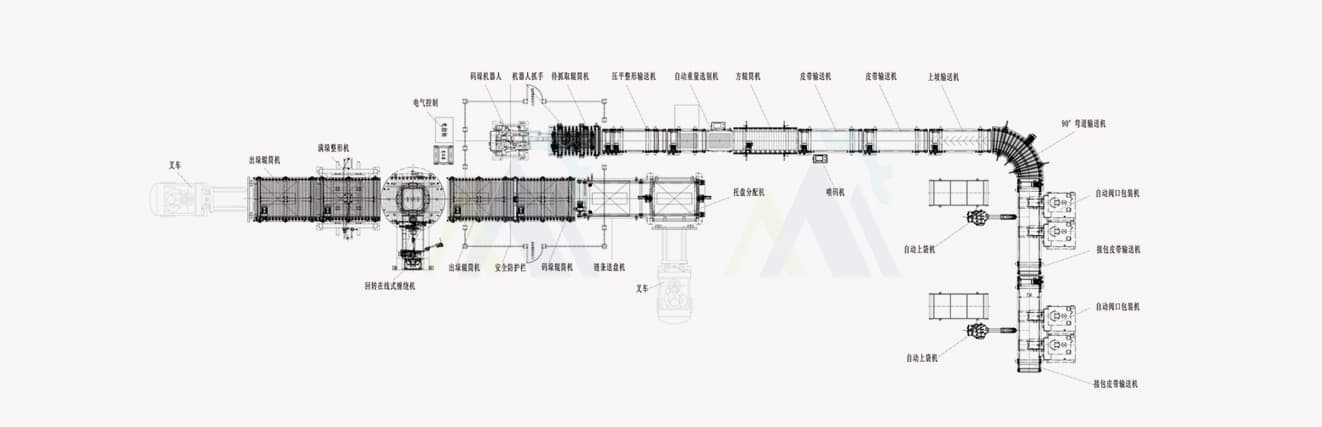

Working principle
Empty bags are placed automatically and filled to the set weight, then conveyed to the check weigher where off-weight bags are rejected. Accepted bags are coded and stacked by the robot in the selected pattern; full pallets are shaped, wrapped and discharged.
Applications
Building materials, chemicals, food, grain and edible oil
Suitable materials
Powders and granular materials
Technical parameters
| Model | Palletizing rate(bags/h) | Bag weight(kg) | Stack height(mm) | Air pressure(MPa) | Line power(kW) | Typical powders |
|---|---|---|---|---|---|---|
| MRMD600 | 400–600 | 5–50 | 60–2200 | 0.5–0.7 | 20–40 | Calcium carbonate, activated carbon |
| MRMD800 | 800–1000 | 5–50 | 60–2200 | 0.5–0.7 | 35–80 | Coal powder, barite powder, etc. |
Parameters are for reference. Contact us to confirm the model that fits your capacity.
