Square Tumbler Screen (MRFX)
The MRFX square tumbler screen (gyratory reciprocating screen) imitates manual sieving. An eccentric drive rotating around a fixed axis produces a regularly changing reciprocating inertial force, giving high throughput, a fully enclosed design and long screen life.
- Screen decks
- 1–10
- Rotation speed
- 180–260 r/min
Advantages
High capacity
Multi-deck design that can run as two groups, replacing several machines.
Gentle, accurate screening
Combines circular, elliptical and linear motion; acceleration 4–5 times lower than ordinary vibrating screens.
Stable operation
Reinforced base, with an optional suspended design for retrofits.
Easy maintenance
Screen panel system for quick cleaning and mesh changes.

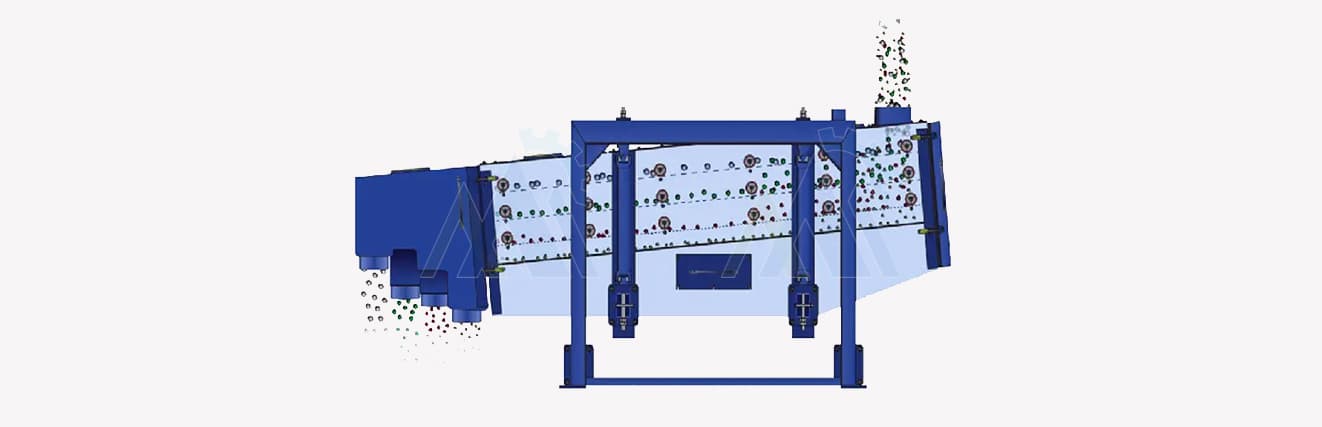

Working principle
Driven by the inertial force, the screen box moves back and forth and the screen surface swings periodically, so material advances in directional hops. Particles smaller than the mesh pass to the lower deck as undersize; larger particles discharge from the deck as oversize.
Applications
Sand and gravel, plastic pellets, metallurgical powders, wood, pharmaceuticals, fertilizers
Suitable materials
Sand and gravel, plastic pellets, metal powders, wood chips, tablets and granules, fertilizers
Technical parameters
| Model | Screen size(m) | Screen area(m²) | Inclination(°) | Decks | Power(kW) | Gyrations(/min) | Stroke |
|---|---|---|---|---|---|---|---|
| MRFX1540 | 1.5×3.5 | 4.5–9 | 5–8 | 1–10 | 5.5 | 180–260 | 25–60 |
| MRFX2040 | 2.0×4.0 | 8–9 | 5–8 | 1–10 | 7.5 | 180–260 | 25–60 |
Parameters are for reference. Contact us to confirm the model that fits your capacity.
