Linear Vibrating Screen (MRZX)
The MRZX linear vibrating screen uses vibration motors as its excitation source, making material hop forward in a straight line over the mesh and separating it into several sizes across multiple decks. It offers low energy use, high output, a simple structure, easy maintenance and a fully enclosed, dust-free design for automated production lines.
- Screen decks
- 1–6
- Feed size
- 0.074–40 mm
Advantages
Durable and vibration-damped
Thickened stainless steel, rust and corrosion resistant.
Efficient screening
High accuracy, large throughput, low noise, good sealing.
Built to order
Every part can be customized; easy to service and integrate into automated lines.
Lower consumable cost
Long service life reduces fine mesh replacement costs.

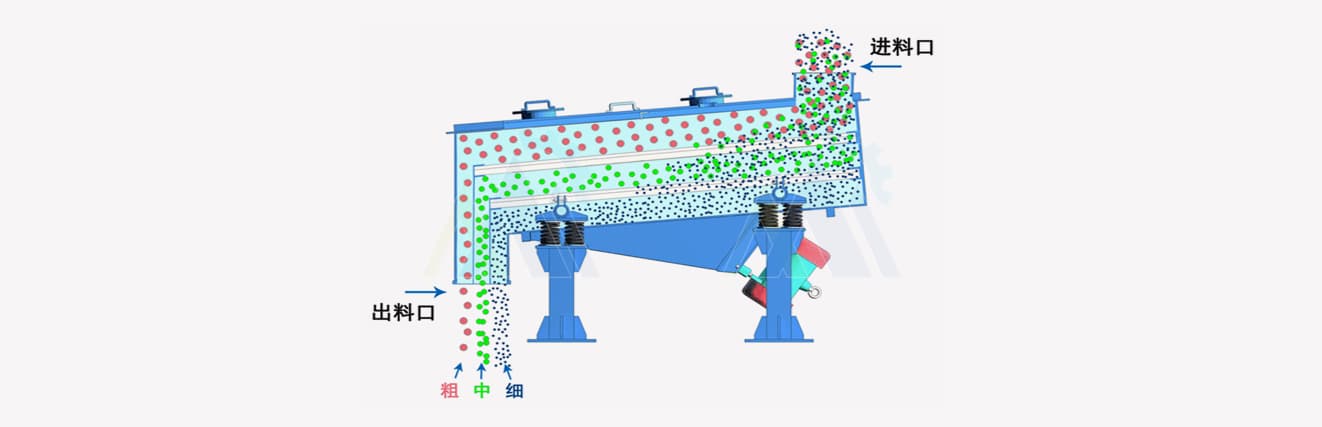

Working principle
Two vibration motors rotate synchronously in opposite directions. The forces of their eccentric weights cancel parallel to the motor axis and combine perpendicular to it, producing straight-line motion. With the motors inclined to the screen deck, material moves forward in hops under this force and its own weight, and is classified by size.
Applications
Metallurgy, mining, chemicals, building materials, food, pharmaceuticals
Suitable materials
Powders, granules, sand and gravel
Technical parameters
| Model | Size(mm) | Particle size(mm) | Vibrations | Inclination(°) | Amplitude | Decks | Motors × power(kW) |
|---|---|---|---|---|---|---|---|
| MRZX520 | 500×2000 | 0.074–20 | 960 | 1–7 | 1–4.5 | 1–6 | 2 × 0.37–0.75 |
| MRZX525 | 500×2500 | 0.074–20 | 960 | 1–7 | 1–4.5 | 1–6 | 2 × 0.37–0.75 |
| MRZX530 | 500×3000 | 0.074–20 | 960 | 1–7 | 1–4.5 | 1–6 | 2 × 0.37–0.75 |
| MRZX1020 | 1000×2000 | 0.074–40 | 960 | 1–7 | 1–4.5 | 1–6 | 2 × 0.37–1.1 |
| MRZX1025 | 1000×2500 | 0.074–40 | 960 | 1–7 | 1–4.5 | 1–6 | 2 × 0.37–1.1 |
| MRZX1030 | 1000×3000 | 0.074–40 | 960 | 1–7 | 1–4.5 | 1–6 | 2 × 0.37–1.1 |
| MRZX1225 | 1000×2500 | 0.074–40 | 960 | 1–7 | 1–4.5 | 1–6 | 2 × 0.37–1.5 |
Parameters are for reference. Contact us to confirm the model that fits your capacity.
