Round Tumbler Screen (MRYX)
The MRYX round tumbler screen is built for high-capacity, high-precision classification. It reproduces the motion of hand sieving mechanically and is ideal for fine powders, micro-particles and difficult materials. Screening accuracy, efficiency and mesh life can reach 5–10 times those of a conventional round vibrating screen.
- Screen decks
- 1–5
- Screen area
- 0.71–5.31 m²
- Amplitude
- 25–40 mm
- Frequency
- 120–360 /min
Advantages
High accuracy
Screening accuracy of 90–95%.
Multiple mesh cleaning options
Bouncing balls, rotary brushes, air jets, elastic scrapers or ultrasonic cleaning prevent blinding.
Gentle screening
Keeps particle structure intact with little static, suitable for flammable materials.
Quiet and enclosed
Low noise, no dust leakage.

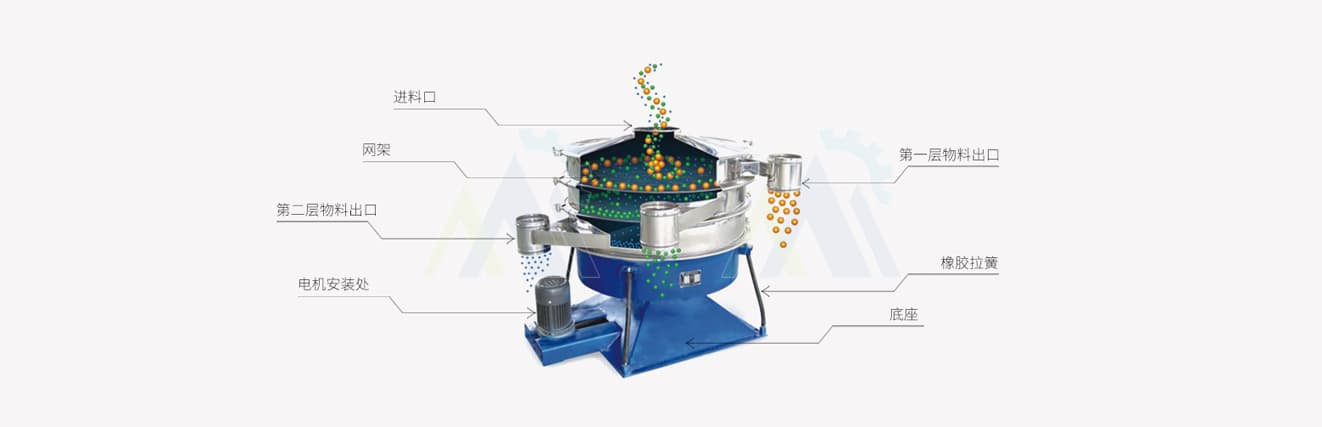

Working principle
A gyratory tumbling motion imitates hand sieving. Material rolls across the screen and spreads evenly toward the edge; fine particles gradually pass through the mesh while coarse particles move to the outlet. Amplitude and frequency are adjustable, and residence time is controlled by the radial and tangential inclination.
Applications
Mining, metallurgy, plastics, rubber, fertilizers, spices, recycling
Suitable materials
Fine powders, micro-particles and hard-to-screen materials
Technical parameters
| Model | Diameter(mm) | Screen area(m²) | Space required | Max. decks | Power(kW) |
|---|---|---|---|---|---|
| MRYX1000 | 1040 | 0.71 | 1.2 | 5 | 1.5 |
| MRYX1200 | 1250 | 1.11 | 1.6 | 5 | 2.2 |
| MRYX1600 | 1580 | 1.83 | 2.5 | 5 | 2.2/4 |
| MRYX2000 | 1880 | 2.62 | 4 | 5 | 2.2/4 |
| MRYX2200 | 2100 | 3.46 | 4.84 | 5 | 3/4 |
| MRYX2600 | 2650 | 5.31 | 7 | 5 | 5.5 |
Parameters are for reference. Contact us to confirm the model that fits your capacity.
